Join two inputs based on common (key) columns, e.g. on an email address or id column present in both inputs.

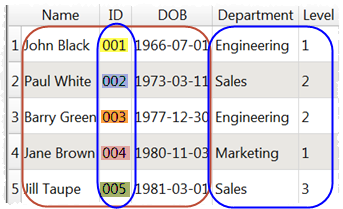

Joining these two datasets by the ID column in each:
•The output depends on the vertical (Y-axis) position of the inputs.
•Select Top key column for the column you want to match in the top input dataset.
•Select Include top non-matching rows if you want to include in the output any rows in the top input with no matching value in the bottom input (a 'left join').
•Select Bottom key column for the column you want to match in the bottom input dataset.
•Select Include bottom non-matching rows if you want to include in the output any rows in the bottom input with no matching value in the top input (a 'right join').
•Easy Data Transform will try to guess sensible default values for Top key column and Bottom key column based on column header names and contents.
•Use Concat Cols to join several columns together (e.g. 'first name' and 'last name' columns) to form a key column.
•Use Row Num to create a unique key column.

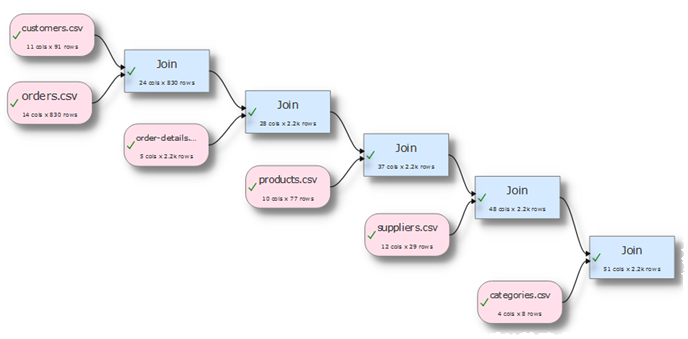

•Cascade multiple joins to join more than 2 datasets.
