When you select an input or transform item and add a transform or output item, connections are added automatically.
To select a connection
To select a connection either:
•Click on the connection; or

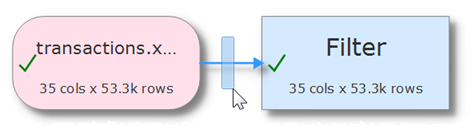

•Click and drag a box over any part of the connection. This may be easier than clicking the connection when you are zoomed back.
To delete a connection
To delete a connection:
•Select the connection.
•Select Edit>Delete (or click the Delete tool bar button).
To add a transform to a connection
To add a transform between two already connected items:
•Select the connection.
•Choose the new transform from the Left pane or using the right click menu.
To add a connection
To add a new connection between two existing items:

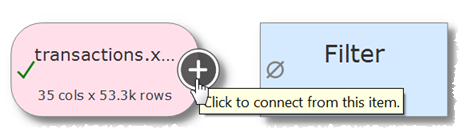

•Hover over the start item.
•Click the '+' that appears.

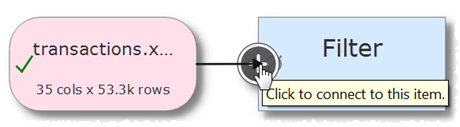

•Hover over the end item
•Click the '+' that appears.
Press the 'Esc' key or click away from an item to cancel adding the connection.
Note that the '+' will only appear if an additional connection is allowed. For example you can't:
•Create a loop.
•Connect more than once from a transform.
•Connect more than once to an output.
