Fixed width format
Easy Data Transform can input from fixed width format files, also known as fixed column width format. Default file extension ".txt".
Fixed width format is used for exchanging tabular data between programs. It is often associated with legacy systems, but is also used for large files where performance is an issue (e.g. bioinformatics).

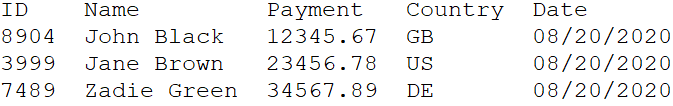

In fixed width format each column has a fixed width in characters. There is no delimiter. Spaces are typically used as padding to make up the column width. For example:

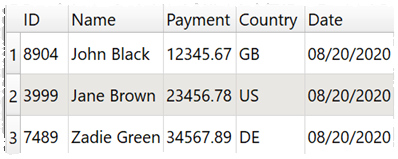

Is input as:

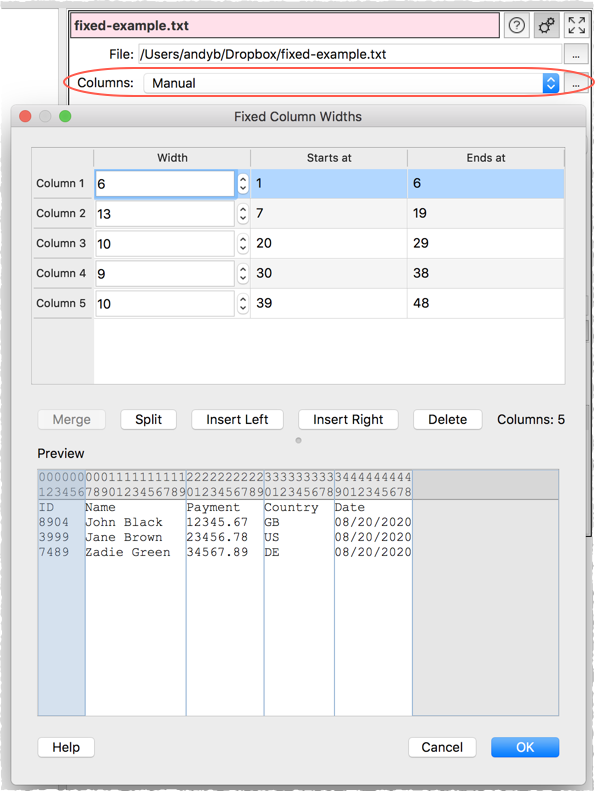

Easy Data Transform will analyze the data and guess the column layout if you set Columns in the right pane to Automatic. Or you can choose the column widths by setting Columns to Manual. Click the '...' button to edit the manual column widths.
The current column boundaries are shown on the first few rows in the Preview. The horizontal offset of each character is shown in gray at the top. The currently selected columns are highlighted. Click on a column in the Preview to select it in the table, or vice versa.
You can change the column widths using the Width column of the table.
Select 2 or more adjacent columns and click Merge to merge them into 1 column. Click then Shift+click in either the table or the preview to select multiple adjacent columns.
Select 1 column with a Width > 1 and click Split to split into into 2 columns.
Select 1 or more adjacent columns and click Insert Left or Insert Right to add a new column with width 1 to the left or right of the selected columns.
Select 1 or more adjacent columns and click Delete delete the selected columns.
Click OK to save your changes and Cancel to discard them.
