Verify that values in the dataset are as expected.

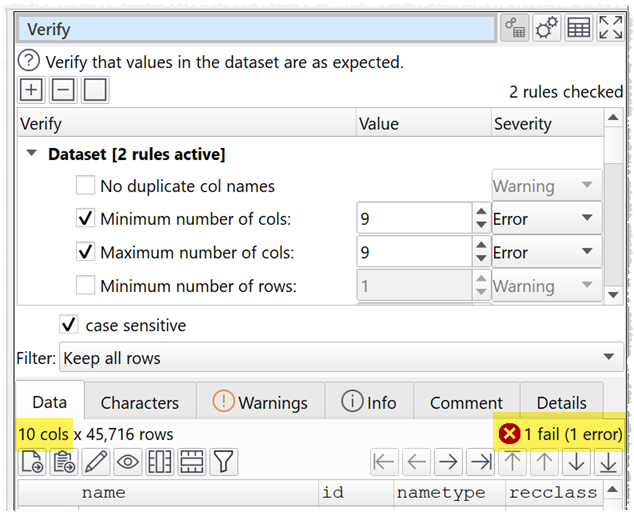

Show an error and stop processing if the dataset doesn't have 9 columns:

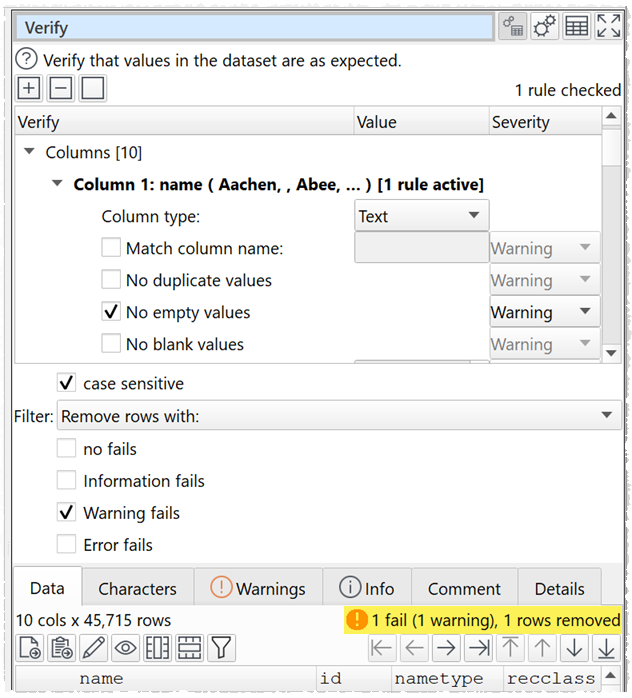

Remove any rows where there is an empty (0 length) value in the 'name' column:

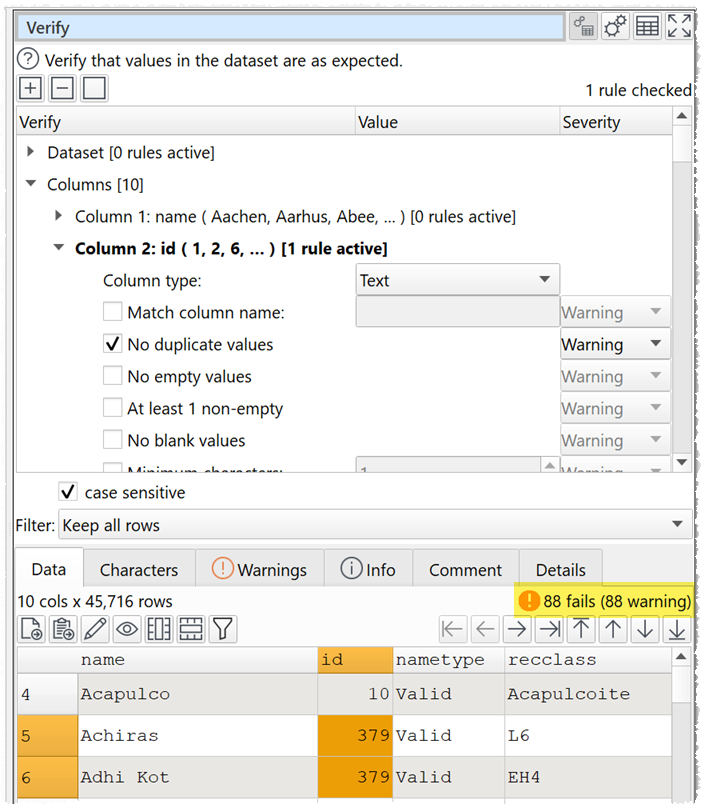

Show a warning message and color any duplicate values in the 'id' column:

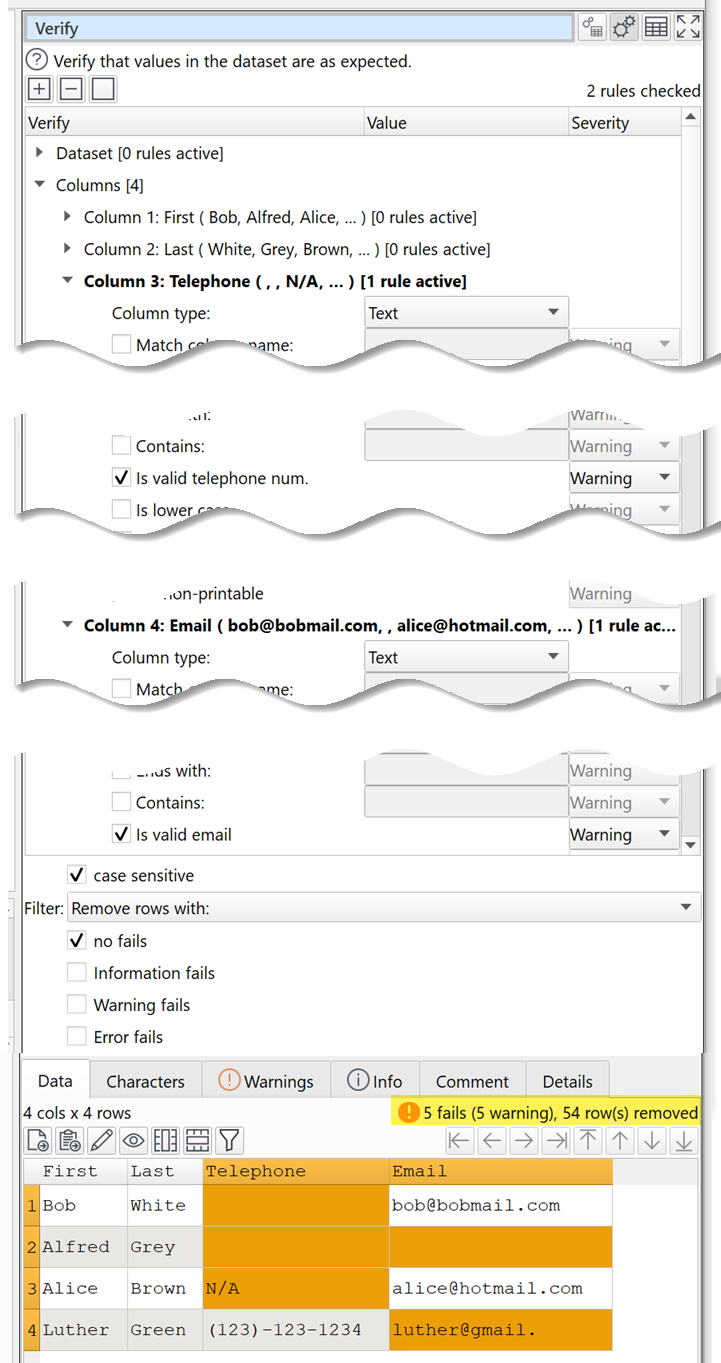

Check for invalid telephone numbers or email addresses and keep only rows with validation fails:
One.
•Choose the rules you wish to verify, for the dataset and for each column.
oCheck each verification rule you wish to apply.
oSet Value for rules that require a value.
oSet Severity according to the severity of a rule fail.
oHover over the rules to see tooltips with more information on each rule.

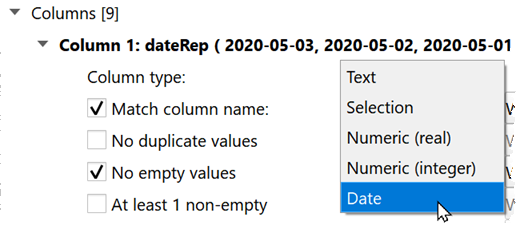

The rules available for each column depends on the Column type selected.
Description (in alphabetic order) |
Notes |
Available for |
Case sensitive option applies |
Applies |
---|---|---|---|---|
At least 1 non-empty |
Verify that at least 1 value in the column is not empty. A value containing whitespace is not considered empty. |
Column type=Text Column type=Numeric (real) Column type=Numeric (integer) Column type=Date |
No |
Per column |
Contains |
Verify that every value in the column contains the text supplied. Matching is sensitive to whitespace. |
Column type=Text Column type=Numeric (real) Column type=Numeric (integer) |
Yes |
Per value in column |
Don't allow listed values |
Verify that no values in the column belong to this list. Separate multiple values by Commas. Matching is sensitive to whitespace. |
Column type=Text |
Yes |
Per value in column |
Ends with |
Verify that every value in the column ends with the text supplied. Matching is sensitive to whitespace. |
Column type=Text Column type=Numeric (real) Column type=Numeric (integer) |
Yes |
Per value in column |
Integer except listed |
Verify that every value in the column is an integer (whole) number or belongs to the list of special values supplied. Separate multiple values by Commas. List matching is sensitive to whitespace. |
Column type=Numeric (integer) |
Yes (for listed special values) |
Per value in column |
Is local file |
Verify that every value in the column is the location (path) of an existing file on this computer. |
Column type=Text |
No |
Per value in column |
Is local folder |
Verify that every value in the column is the location (path) of an existing folder on this computer. |
Column type=Text |
No |
Per value in column |
Is lower case |
Verify that any letters are lower case. |
Column type=Text |
No |
Per value in column |
Is sentence case |
Verify that any values are sentence case. E.g.: Sentence case. |
Column type=Text |
No |
Per value in column |
Is title case |
Verify that any values are title case. E.g.: Title Case. |
Column type=Text |
No |
Per value in column |
Is upper case |
Verify that any letters are upper case. |
Column type=Text |
No |
Per value in column |
Is valid EAN13 |
Verify that every value in the column is a valid EAN13 barcode number (13 digits, including a valid checksum digit). Whitespace is ignored. |
Column type=Numeric (integer) |
No |
Per value in column |
Is valid email |
Verify that every value in the column is a valid email address. E.g.: •email@email.com •EMAIL@EMAIL.COM Does not check if the email actually exists. |
Column type=Text |
No |
Per value in column |
Is valid telephone num. |
Verify that every value in the column is a valid telephone number. E.g.: •(123)-123-1234 •1-123-123-1234 •123.123.1234 •+12 (123) 123-1234 •11231231234 •+1 123 123-1234 Does not check if the phone number actually exists. |
Column type=Text Column type=Numeric (integer) |
No |
Per value in column |
Is valid UPC-A |
Verify that every value in the column is a valid UPC-A barcode number (12 digits, including a valid checksum digit). Whitespace is ignored. |
Column type=Numeric (integer) |
No |
Per value in column |
Match column name |
Verify that column has the supplied name. Matching is sensitive to whitespace. |
Column type=Text Column type=Selection Column type=Numeric (real) Column type=Numeric (integer) Column type=Date |
Yes |
Per column |
Matches regex |
Verify that every value in the column matches the regular expression supplied. E.g. $x.*$ to match values that start with x. Matching is sensitive to whitespace. |
Column type=Text |
Yes |
Per value in column |
Maximum characters |
Verify the maximum number of characters in each value in the column. Whitespace characters are counted. |
Column type=Text Column type=Numeric (real) Column type=Numeric (integer) Column type=Date |
No |
Per value in column |
Maximum number of cols |
Verify the maximum number of columns in the dataset. |
Dataset |
No |
Per dataset |
Maximum number of rows |
Verify the minimum number of rows in the dataset. |
Dataset |
No |
Per dataset |
Maximum value |
Verify the maximum value in the column. Numbers equal to this value are ok. |
Column type=Numeric (real) |
No |
Per value in column |
Verify the maximum value in the column. Numbers equal to this value are ok. |
Column type=Numeric (integer) |
No |
Per value in column |
|
Verify the last allowed date in the column. Dates equal to this value are ok. |
Column type=Date |
No |
Per value in column |
|
Minimum characters |
Verify the minimum number of characters in each value in the column. Whitespace characters are counted. |
Column type=Text Column type=Numeric (real) Column type=Numeric (integer) Column type=Date |
No |
Per value in column |
Minimum number of cols |
Verify the minimum number of columns in the dataset. |
Dataset |
No |
Per dataset |
Minimum number of rows |
Verify the minimum number of rows in the dataset. |
Dataset |
No |
Per dataset |
Minimum value |
Verify the minimum value in the column. Numbers equal to this value are ok. |
Column type=Numeric (real) |
No |
Per value in column |
Verify the minimum value in the column. Numbers equal to this value are ok. |
Column type=Numeric (integer) |
No |
Per value in column |
|
Verify the first allowed date in the column. Dates equal to this value are ok. |
Column type=Date |
No |
Per value in column |
|
No blank values |
Verify that no value is all whitespace characters. |
Column type=Text |
No |
Per value in column |
No Carriage Returns |
Verify that values do not contain Carriage Return characters. |
Column type=Text |
No |
Per value in column |
No currency |
Verify that values do not contain currency characters. E.g. $, £ or €. |
Column type=Text |
No |
Per value in column |
No digits |
Verify that values do not contain digit characters E.g. 0 or 9. |
Column type=Text |
No |
Per value in column |
No double spaces |
Verify that values do not contain consecutive Space characters. |
Column type=Text |
No |
Per value in column |
No duplicate col names |
Verify that no 2 column names in the dataset are the same. Matching is sensitive to whitespace. |
Dataset |
Yes |
Per column |
No duplicate values |
Verify that no value in the column appears more than once. Matches as text. Matching is sensitive to whitespace. |
Column type=Text |
Yes |
Per value in column |
Verify that no value in the column appears more than once. Matches as integers. E.g. 1, +1, and 01 are duplicates. |
Column type=Numeric (integer) |
No |
Per value in column |
|
Verify that no value in the column appears more than once. Matches as dates. E.g. 01/01/2000 and 1/1/2000 are duplicates. |
Column type=Date |
No |
Per value in column |
|
No empty rows |
Verify that no rows in the dataset have an empty value for every column. A value containing whitespace is not considered empty. |
dataset |
No |
Per row |
No empty values |
Verify that no values in the column are empty. A value containing whitespace is not considered empty. |
Column type=Text Column type=Numeric (real) Column type=Numeric (integer) Column type=Date |
No |
Per value in column |
No gaps in values |
Verify every possible value between the minimum and maximum values in the column occurs at least once. E.g. 4, 1, 2, 4 has a gap at 3. |
Column type=Numeric (integer) |
No |
Per column |
Verify every possible date between the minimum and maximum values in the column occurs at least once. E.g. for dd/MM/yyyy format 01/01/2000, 02/01/2000 and 04/01/2000 has a gap at 03/01/2000. |
Column type=Date |
No |
Per column |
|
No leading/trailing whitespace |
Verify that values do not contain leading or trailing whitespace characters. |
Column type=Text |
No |
Per value in column |
No Line Feeds |
Verify that values do not contain Line Feed characters. |
Column type=Text |
No |
Per value in column |
No non-ASCII |
Verify that values do not contain non-ASCII characters. |
Column type=Text |
No |
Per value in column |
No non-printable |
Verify that values do not contain non-printable characters, such as Null. |
Column type=Text |
No |
Per value in column |
No punctuation |
Verify that values do not contain punctuation characters. E.g. !, ; or .. |
Column type=Text |
No |
Per value in column |
No symbols |
Verify that values do not contain symbol characters. E.g. $, +, = or >. |
Column type=Text |
No |
Per value in column |
No Tab characters |
Verify that values do not contain Tab characters. |
Column type=Text |
No |
Per value in column |
No whitespace |
Verify that values do not contain whitespace characters. E.g. Space, Tab, Carriage Return or Line Feed. |
Column type=Text Column type=Numeric (real) Column type=Numeric (integer) Column type=Date |
No |
Per value in column |
Numeric except listed |
Verify that every value in the column is a real number or belongs to the list of special values supplied. Separate multiple values by Commas. List matching is sensitive to whitespace. |
Column type=Numeric (real) |
Yes (for special listed values) |
Per value in column |
Only allow listed values |
Verify that all values in the column belong to this list. Separate multiple values by Commas. Matching is sensitive to whitespace. |
Column type=Selection |
Yes |
Per value in column |
Require listed values |
Verify that every listed value appears at least once in the column, matching as text. Separate multiple values by Commas. Matching is sensitive to whitespace. |
Column type=Text Column type=Numeric (integer) |
Yes |
Per column |
Starts with |
Verify that every value in the column starts with the text supplied. Matching is sensitive to whitespace. |
Column type=Text Column type=Numeric (real) Column type=Numeric (integer) |
Yes |
Per value in column |
Valid date in format |
Verify that every value in the column is a valid date in the supplied date format. The rule will fail if either: •The date is in the wrong format. E.g. 31/01/2000 does not match format yyyy/MM/dd. •The date is in the right format, but does not exist. E.g. 2000/02/30 is a non existent date in format yyyy/MM/dd. |
Column type=Date |
No |
Per value in column |
•Check case sensitive to use case sensitive matching. Case sensitivity is only relevant to some rules (see the table above).
•Set Filter according to which rows you wish to keep. E.g. you might want to remove rows with warnings.

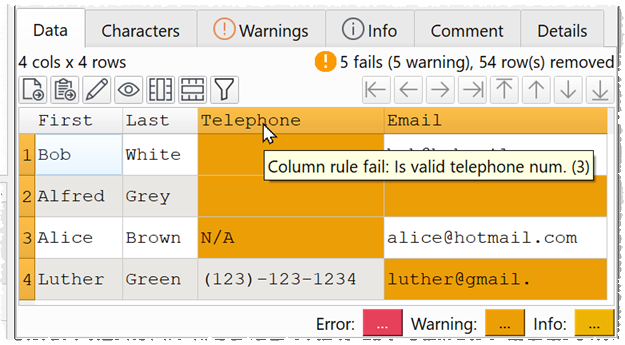

•Any verification fails are color-coded in the Right pane data table. Hover over a header or value for information on the rule(s) failed. Click on the color buttons to change the colors used.
•A summary of all the verification rules and whether they passed or failed is output to the Info tab.
•A summary of failed verification rules with Severity set to Warning or Error is output to the Warning tab.
•Checking a rule may hide other, mutually exclusive, rules. E.g. checking No empty values for a column will hide the Minimum characters rule.
•All date verification rules use the date format in Valid date in format rule, if set. Otherwise Easy Data Transform will attempt to infer the date format from Preferences>Dates and the values in each column.
•The locale is used to decide the validity of numbers and dates. E.g. '1,234.5' is a valid real number in some locales.
•Some rules have associated lists of values. The list is Comma separated, consequently, values cannot contain Commas.
•If you want to verify the relationship between 2 columns (e.g. the value is column A is always greater than the value in column B for the same row) use a transform, such as Compare Cols or If and then use Verify on the new column.
